The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, And at the same time support USB keyboard mouse long distance transmission function, EDID pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

• Transmits HDMI video OM3 transmission 300 meter multimode dual core optical fiber
• Support keyboard and mouse signal transmission
• Support video resolution up to 3840*2160@30Hz, 1920*1200@60hz, 1920*1080P@60Hz, 3D signal;
• Transmits HDMI signals up to 300 meters over OM3 fiber optic cable, also support EDID and HDCP
• Compliance with HDMI I 1.4 standard
• High compatibility, can auto-match source and display device
• Built-in automatic adjustment system, make the image smooth, clear and stable
• Built-in ESD protection system
• Simple to install, plug and play

Specification

Video

• Standards: HDMI 1.4
• Maximum pixel clock: 225MHz
• Maximum data rate: 6.75Gbps
• Resolution range: Up to 3840*2160@30Hz
• Connector: Female HDMI type A
• Impedance: 100Ω

K/M

• Interface PC: MINI-USB, Keyboard And Mouse: USB-A

Optical fiber

• Interface: SFP model – LC connector
• Fiber type: Multimode dual core
• Wavelength: Multimode optical fiber 850 nm
• Interface bandwidth: 10Gbps
• Transmission distance: Double OM3 fiber: 300M(Support HDCP

Other

• Power supply: The power adapter: DC 5V/2A
• Power dissipation: MAX 5W
• Temperature: Operating: -5℃ ~ +70℃
• Humidity: Operating: 5% ~ 90%
• Dimension: 93*70*25mm
• The warranty: 1 year free warranty

Installation

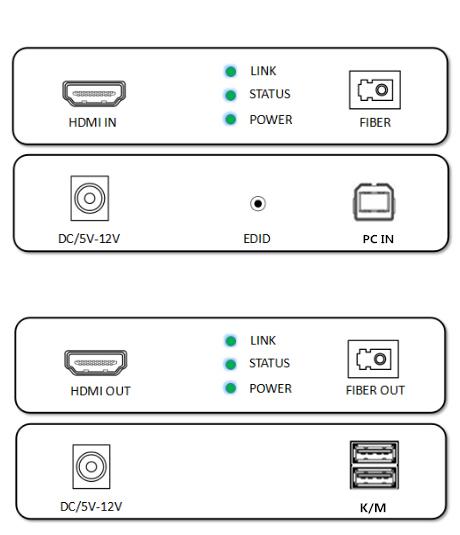

Port name/Description

• HDMI IN/OUT: HDMI signal input/output
• EDID: EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
• KM:PC: MINI-USB
• Keyboard And Mouse: USB-A
• DC/5V: Power adapter socket
• FIBER: SFP model — LC connector

LED indicator/Description

• L: Optical fiber signal connection indicator
• S: Video signal connection indicator
• P: System power indicator

1. Connect the provided DC power supplies to the power socket of the transmitter and the receiver,
2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3. Connect the HDMI output port of receiver to the display device with HDMI cable,
4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
