AN-HDMI-EXT01 AD-NET
Product number: 165397
No one voted yet.

HDMI and RS-232 over Fiber converter

The AN-HDMI-EXT01 Fiber optic converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal transmission and transmitter local output function.

996.74 €
Inc. VAT
Out of stock
Qty.
Add to cart
Share via:

The AN-HDMI-EXT01 Fiber optic converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal transmission and transmitter local output function. The converter can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

  • Transmits HDMI video signals up to 2km-10km over one fiber optic cable
  • Support video resolution up to 1920*1080P@60Hz, 3D signal
  • Support RS232 signal unidirectional transmission, baud rate self-adaptive
  • Support copy EDID, can match many kind display device
  • Transmitter support one channel HDMI local output
  • Receiver support two channel HDMI output
  • Compliance with HDMI 1.3 and HDCP 1.2 standard
  • High compatibility, can auto-match source and display device
  • Built-in automatic adjustment system, make the image smooth, clear and stable
  • Built-in ESD protection system
  • Simple to install, plug and play

Specification

Video

  • Standards:HDMI 1.3; HDCP 1.2
  • Maximum pixel clock:165MHz
  • Maximum data rate:6.75Gbps
  • Resolution range:Up to 1920X1080P@60Hz
  • Connector:Female HDMI type A
  • Impedance:100Ω

RS232

  • Interface:DB9 socket
  • Signal direction:Unidirectional
  • Baud rate:Self-adaptive, Max:115200bps
  • Data bits:8

Optical Fiber

  • Interface:SFP model – LC connector
  • Fiber type:Single-mode
  • Wavelength:Single-mode 1310nm
  • Interface bandwidth:10Gbps
  • Transmission distance:Single-mode fiber: standard 2km;maximum 10km

Other

  • Power supply:The power adapter: DC 5V/2A
  • Power dissipation:MAX 5W
  • Temperature:Operating: -5℃ ~ +70℃
  • Humidity:Operating: 5% ~ 90%
  • Dimension:165*80*30mm
  • The warranty:1 year free warranty

Installation

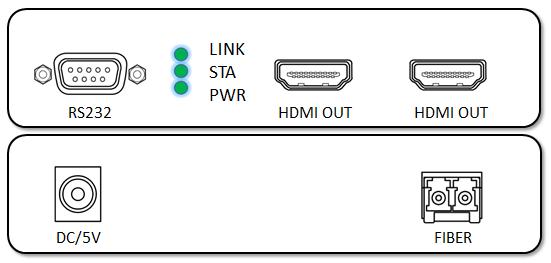

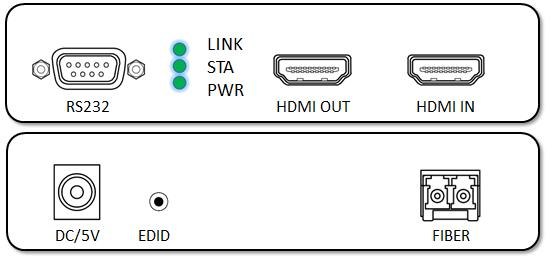

Port name/Description

  • HDMI IN/OUT: HDMI signal input/output
  • EDID: EDID button, press 3 second to copy EDID of display device
  • RS232: DB9 socket
  • DC/5V: Power adapter socket
  • Fiber: SFP model — LC connector

LED indicator/Description

  • LINK: Optical fiber signal connection indicator
  • STA: Video signal connection indicator
  • PWR: System power indicator
  1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
  2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
  3. Connect the HDMI output port of receiver to the display device with HDMI cable,
  4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
