The AN-HDMI-EXT03 Fiber optical extender provides extension of HDMI signals long distances over one fiber optical cable, it supports high resolution up to 1080P, EDID copy, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

• Transmits HDMI video signals up to 10km over one fiber optic cable
• Support video resolution up to 1920*1080P@60Hz
• Support copy EDID, can match many kind display device
• Support external stereo audio unidirectional transmission
• Support RS232 signal unidirectional transmission, baud rate self-adaptive
• Compliance with HMDI 1.3 and HDCP 1.2 standard
• High compatibility, can auto-match source and display device
• Built-in automatic adjustment system, make the image smooth, clear and stable
• Built-in ESD protection system
• Simple to install, plug and play

Specification

Video

• Standards: HDMI 1.3; HDCP 1.2
• Maximum pixel clock: 165MHz
• Maximum data rate: 4.5Gbps
• Resolution range: Up to 1920X1080@60Hz
• Connector: Female HDMI type A
• Impedance: 100Ω

Audio

• Interface: 3.5mm earphone seat
• Signal type: Stereo

RS232

• Interface: DB9 socket
• Signal direction: Unidirectional
• Baud rate: Self-adaptive, Max：115200bps
• Data bits: 8

Optical fiber

• Interface: LC connector
• Fiber type: Single-mode single fiber
• Wavelength: Single-mode 1310nm
• Interface bandwidth: 4.5Gbps
• Transmission distance: standard 10km

Other

• Power supply: The power adapter: DC 5V/2A
• Power dissipation: MAX 6W
• Temperature: Operating: -5℃ ~ +70℃
• Humidity: Operating: 5% ~ 90%
• Dimension: 136*130*30mm
• The warranty: 1 year free warranty

Installation

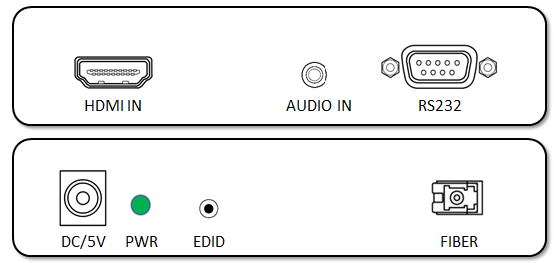

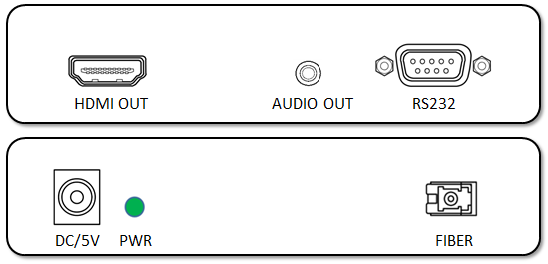

Port name/Description

• HDMI IN/OUT: HDMI signal input/output
• Audio IN/OUT: Stereo audio signal input/output
• EDID: EDID button, press 3 second to copy EDID of display device
• RS232: DB9 socket
• DC/5V: Power adapter socket
• Fiber: LC connector

LED indicator/Description

• PWR: System power indicator

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
3. Connect the HDMI output port of receiver to the display device with HDMI cable,
4. Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
