AN-HDMI-UTP-EXT04 AD-NET
Product number: 165409
No one voted yet.

HDMI Extender over single CAT6 with Local HDMI out port

Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings.

136.81 €
Inc. VAT
Out of stock
Qty.
Add to cart
Share via:

Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.

Features

  • Support HDMI 1.3 protocol
  • HDCP 1.2 protocol compliant
  • Support 3D
  • Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Signal transmission: Single cat-6e or cat-6(recommended) cable up to 60 meters instead of HDMI cables are connected between TX and RX Extender.
  • Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • LED indication:  when power is supplied or device is working, the LED indicator is bright.
  • Support up to 5metres AWG26 cable length between extender and source & sink device
  • No loss of quality
  • Installs in minutes
  • Need DC5V/1A power supply

Specification

  • Length of CAT-5E or CAT-6 cable between Rx and TX:1080p Up to 60 meters
  • HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support audio format input: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support audio format output: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max transmission bandwidth: 5.1Gbps
  • Input Video signal: 0.5~1.5Volts p-p
  • Output DDC signal: 5Volts p-p (TTL)
  • Input/Output HDMI1.3 cable distance: .≤20m AWG26 HDMI 1.3 standard cable
  • Max working current: 400mA
  • Power adapter format:Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A
  • Operating Temperature range: (-15 to +55℃)
  • Operating Humidity range: 5 to 90%RH (No Condensation)
  • Dimension (L x W x H): 65mm*100mm*25mm
  • Weight: 310g

Installation

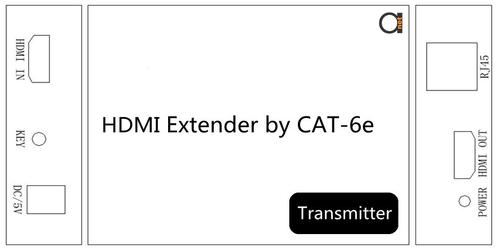

Transmitter/Descriptions

  • DC/5V: Power input 5V/2A
  • HDMI OUT: Local HDMI output
  • HDMI IN: Connect the HDMI input source(such as HD-DVD,PS3,STB etc.)
  • RJ45: Connect cat6
  • KEY: Study EDID Key, press 2S, study EDID from the displayer of connect to HDMI OUT port

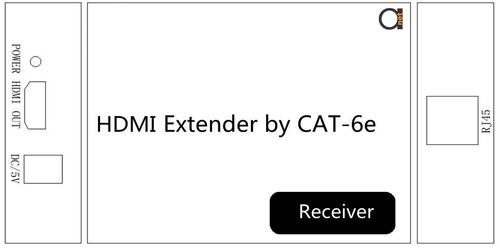

Receiver/Descriptions

  • DC/5V: Power input, 5V/2A
  • HDMI OUT: HDMI output port, Connect to HD displayer
  • RJ45: Connect cat 6
  1. Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter.
  2. Connect a CAT6 cable from RJ45 port of transmitter to RJ45 port of receiver
  3. Connect the HDMI sink(such as HD-LCD、HD-DLP)to receiver
  4. Connect 5V power supply to the HDMI RX&TX Extender
